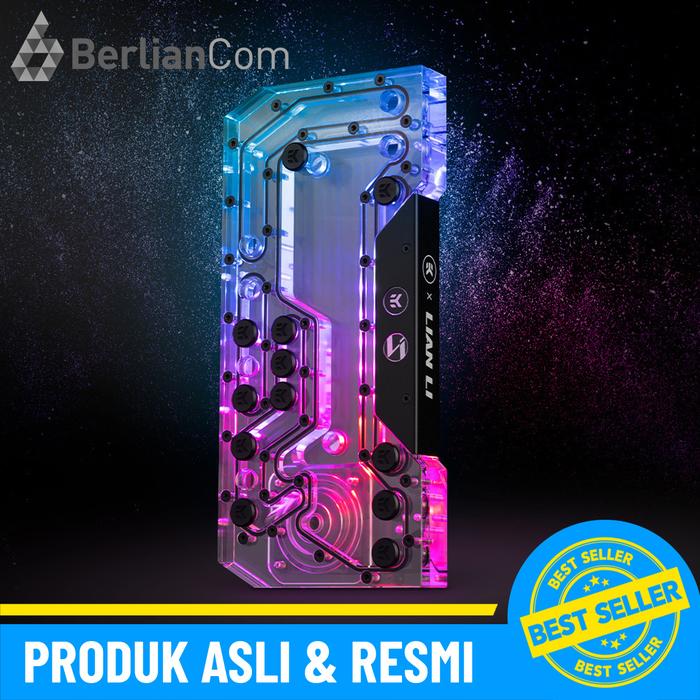

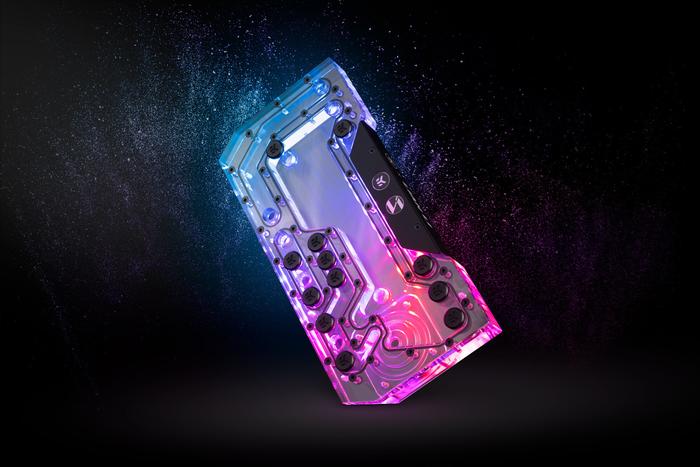

EKWB EK Mana G2 PC O11D EVO DDC D-RGB Distribution Plate

EKWB EK Mana G2 PC O11D EVO DDC D-RGB Distribution Plate

For a standard setup with a horizontally mounted GPU with an ATX motherboard, the list of compatibility for the EK-Quantum Surface radiator is as follows:

• Lian Li O11D: maximum 360mm P series at the top and 360mm S series at the bottom
• Lian Li O11D XL: maximum 360mm P series at the top and 360mm X series at the bottom
• Lian Li O11D EVO: maximum 360mm P series at the top and 360mm X series at the bottom
• Lian Li O11D EVO XL: maximum 420mm P series at the top and 420mm X series at the bottom
• Lian Li O11D EVO RGB: maximum 360mm P series at the top and 360mm X series at the bottom

For those who do not wish to use a DDC pump, this distribution plate can also mount D5 pumps using an EK-Loop D5 Pump Mounting Kit.

Technical Details
Reservoir:
Dimensions with the attached pump (W x D x H): 312 x 50.9 x 142mm
Reservoir volume: ~250ml
D-RGB LED count: 9
D-RGB cable length: 800mm
D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)
Pump Motor Technical Specifications:

Dimensions (W x D x H): 90 x 62 x 38mm
Motor: Electronically commuted ball bearing motor
Rated voltage: 12V DC
Power consumption: 20W
Maximum pressure head: 5.2m
Maximum flow: 1000L/h
Maximum system temperature: 60°C
Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminum oxide, hard coal
Power connector: SATA and 4-pin PWM FAN connector
Operational Regime:

PWM duty cycle: ~ 20-100%
Default behavior: runs at 100% duty cycle when no PWM feedback signal is present

CATATAN PENTING :
* Stock terbatas, silahkan konfirmasi terlebih dahulu sebelum membeli.
* Barang Baru.
* Disarankan menggunakan asuransi.
* Garansi 1 tahun berlaku untuk pompa. kerusakan fisik pecah / retak tidak tercover garansi
* Silahkan sertakan Video Unboxing dari awal terima barang saat melakukan komplain, Tanpa video Unboxing kami tidak akan menerima komplain kekurangan dan kerusakan apapun.
* MEMBELI BERARTI ANDA SUDAH MEMBACA DAN SETUJU DENGAN ATURAN INI.
