EKWB EK Quantum Surface P280M – White Radiator 280mm

Rp2.535.000

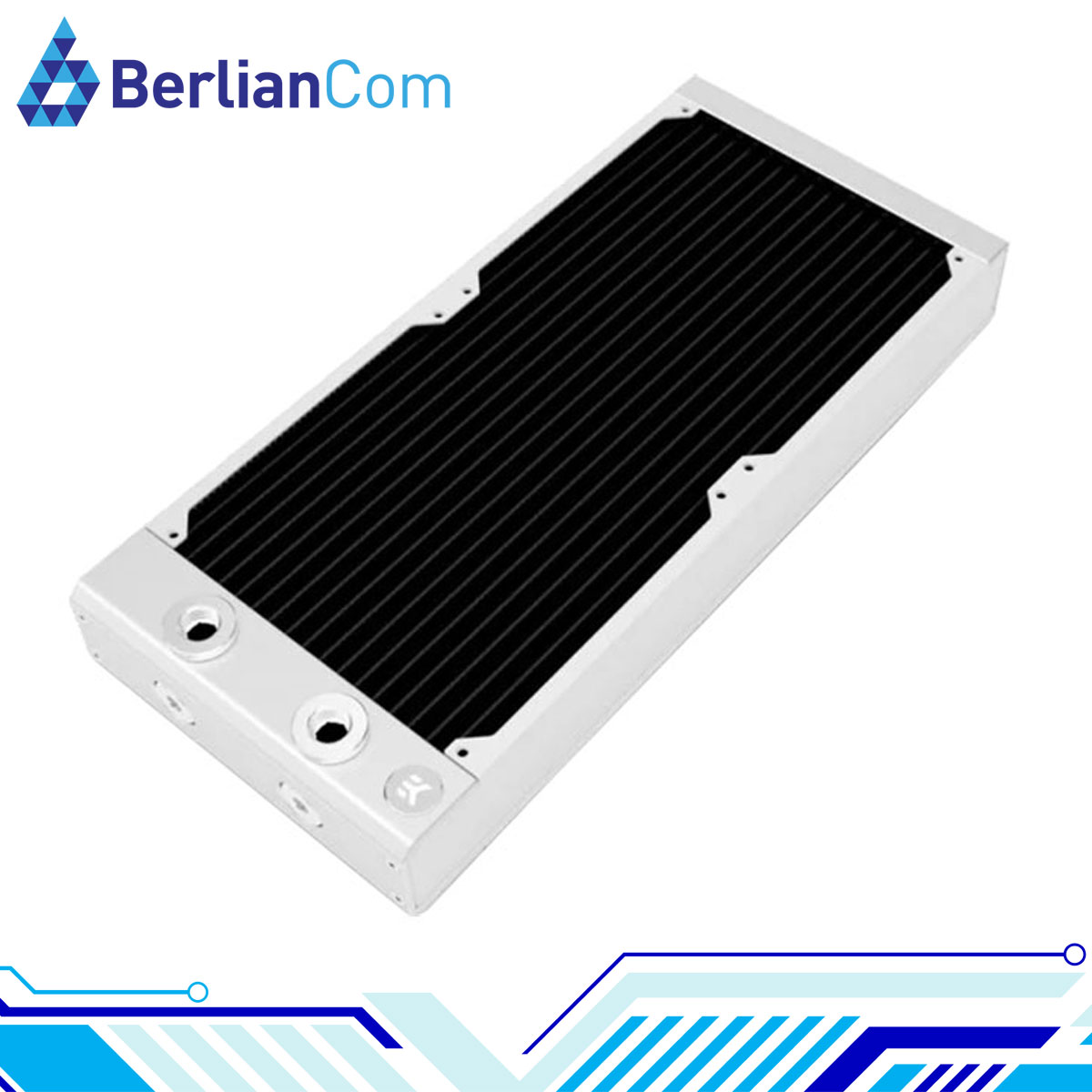

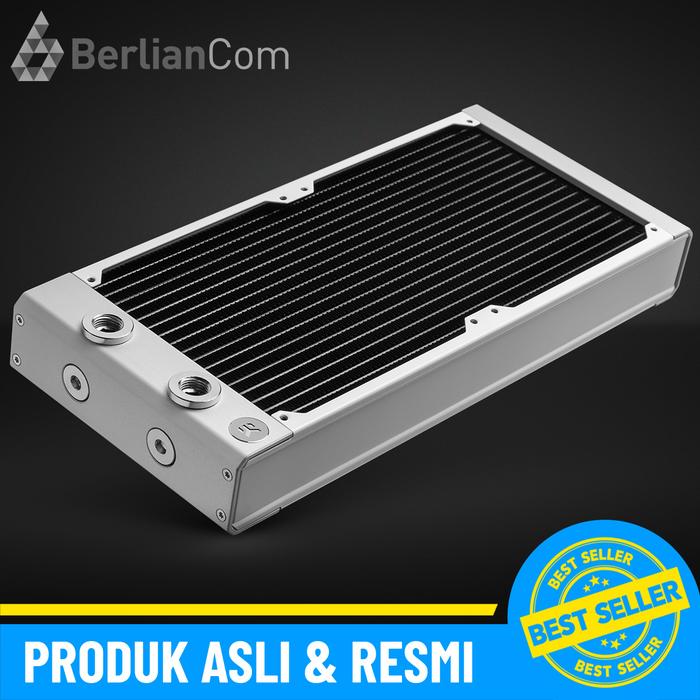

EKWB EK Quantum Surface P280M – White Radiator 280mm

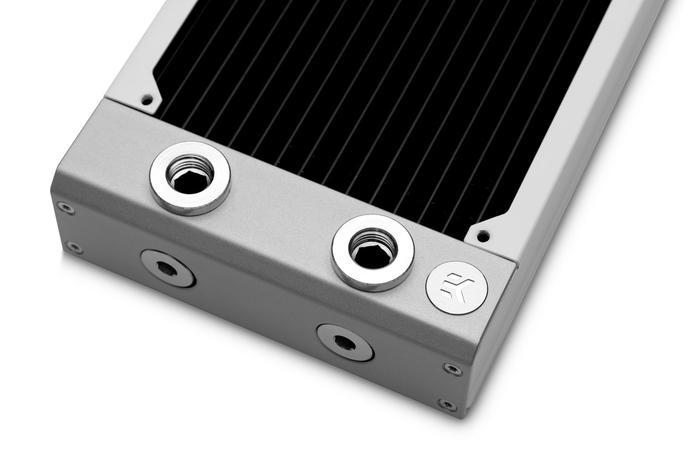

With a thickness of 44mm, the EK-Quantum P Series Surface radiators are the absolute all-rounders for low noise and high performance across the entire fan operational range. Equipped with a total of four G1/4“ threaded connection ports, it provides additional versatility during the loop planning process, while the fifth G1/4“ port located on the end-tank is an irreplaceable feature when it comes to draining the loop and air bleeding. A total of eighteen 2mm-wide copper tubes across the entire radiator length assure optimal coolant flow, putting no stress on your cooling loop. High-grade non-louvered copper fins with 18 FPI density provide the best balance between thermal transfer and air resistance, enabling optimal performance even at low-speed fan operation.

Technical and Material Specifications:

– High-grade 99.9% copper fins
– Copper H90 tubing
– Brass H62 end tank chambers
– Stainless Steel side plates
– Extruded Aluminum Silver anodized end piece covers
– Brass nickel-plated adapters and plugs

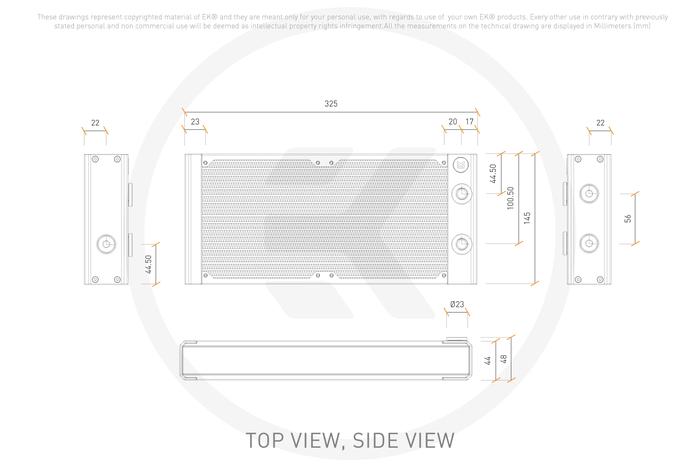

Dimensions: 325 x 145 x 44mm (L x W x H)
Weight: 1.46kg
FPI: 18
Port threads: 5x G1/4″
Fan compatibility: 140x140x25mm fan
Pressure tested: 1bar

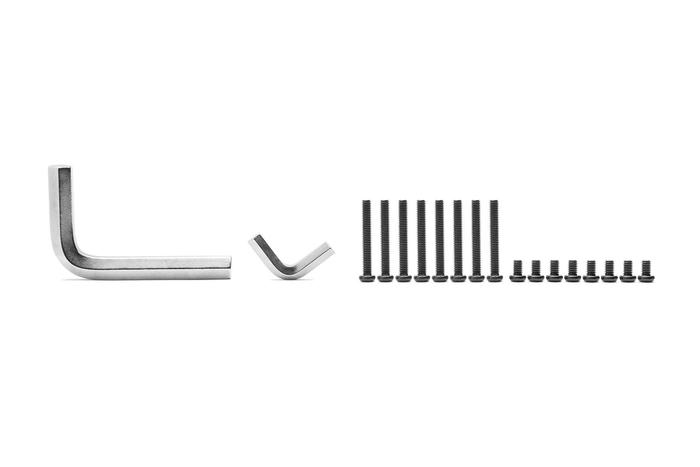

Enclosed:

– EK-Quantum Surface P series radiator
– 8x Phillips Slotted M4x30mm for 25mm thick fans
– 8x Phillips Slotted M4x5mm for mounting the radiator directly to the case
– 6mm steel Allen (Hex) key
– 9mm steel Allen (Hex) key

CATATAN PENTING :
* Stock terbatas, silahkan konfirmasi terlebih dahulu sebelum membeli.
* Barang Baru.
* Harga belum termasuk ongkos kirim.
* Disarankan menggunakan asuransi.
* PRODUK INI TIDAK ADA GARANSI dan TIDAK BISA RETUR
* Silahkan sertakan Video Unboxing dari awal terima barang saat melakukan komplain, Tanpa video Unboxing kami tidak akan menerima komplain kekurangan dan kerusakan apapun.
* MEMBELI BERARTI ANDA SUDAH MEMBACA DAN SETUJU DENGAN ATURAN INI.

Only 2 left in stock

SKU: 3831109839331 Category:

Description

EKWB EK Quantum Surface P280M – White Radiator 280mm

With a thickness of 44mm, the EK-Quantum P Series Surface radiators are the absolute all-rounders for low noise and high performance across the entire fan operational range. Equipped with a total of four G1/4“ threaded connection ports, it provides additional versatility during the loop planning process, while the fifth G1/4“ port located on the end-tank is an irreplaceable feature when it comes to draining the loop and air bleeding. A total of eighteen 2mm-wide copper tubes across the entire radiator length assure optimal coolant flow, putting no stress on your cooling loop. High-grade non-louvered copper fins with 18 FPI density provide the best balance between thermal transfer and air resistance, enabling optimal performance even at low-speed fan operation.

Technical and Material Specifications:

– High-grade 99.9% copper fins

– Copper H90 tubing

– Brass H62 end tank chambers

– Stainless Steel side plates

– Extruded Aluminum Silver anodized end piece covers

– Brass nickel-plated adapters and plugs

Dimensions: 325 x 145 x 44mm (L x W x H)

Weight: 1.46kg

FPI: 18

Port threads: 5x G1/4"

Fan compatibility: 140x140x25mm fan

Pressure tested: 1bar

Enclosed:

– EK-Quantum Surface P series radiator

– 8x Phillips Slotted M4x30mm for 25mm thick fans

– 8x Phillips Slotted M4x5mm for mounting the radiator directly to the case

– 6mm steel Allen (Hex) key

– 9mm steel Allen (Hex) key

CATATAN PENTING :

* Stock terbatas, silahkan konfirmasi terlebih dahulu sebelum membeli.

* Barang Baru.

* Harga belum termasuk ongkos kirim.

* Disarankan menggunakan asuransi.

* PRODUK INI TIDAK ADA GARANSI dan TIDAK BISA RETUR

* Silahkan sertakan Video Unboxing dari awal terima barang saat melakukan komplain, Tanpa video Unboxing kami tidak akan menerima komplain kekurangan dan kerusakan apapun.

* MEMBELI BERARTI ANDA SUDAH MEMBACA DAN SETUJU DENGAN ATURAN INI.

Additional information

Weight 2 kg
