EKWB EK Quantum Surface S420 – White Radiator 420mm

Rp2.635.000

EKWB EK Quantum Surface S420 – White Radiator 420mm

With a thickness of only 30mm, the EK-Quantum S Series Surface radiators are ideal for space-constrained cases. Despite the reduced thickness, they deliver exceptional performance at very low and medium fan speeds. A total of eighteen copper 2mm wide tubes across the entire length of the radiator assure optimal coolant flow putting no stress on your cooling loop. High-grade non-louvered copper fins with 20 FPI density provide the best balance between thermal transfer and air resistance for optimal performance even at low-speed fan operation. A Push/Pull setup on an S Series EK-Quantum Surface radiator is not something EK would recommend since it will not bring a proportional performance increase. If more cooling power is needed, adding additional radiators is the way to go.

Technical and Material Specifications:

– High-grade 99.9% copper fins
– Copper H90 tubing
– Brass H62 end tank chambers
– Stainless Steel side plates
– Extruded Aluminum Silver anodized end piece covers
– Brass nickel-plated adapters and plugs

Dimensions: 465 x 145 x 30mm (L x W x H)
Weight: 1.12kg
FPI: 20

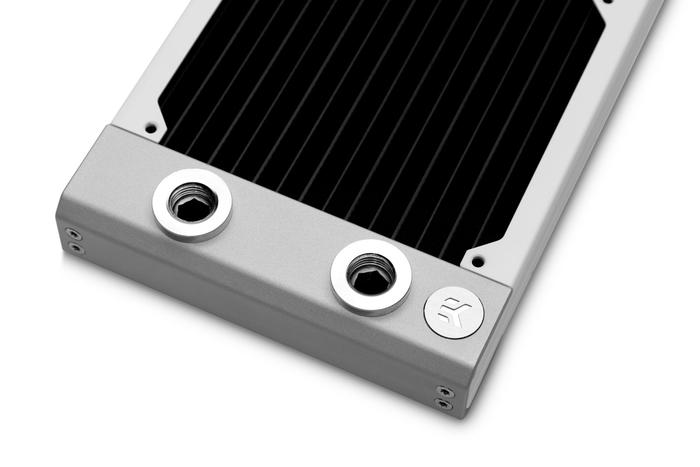

Port threads: 2x G1/4″
Fan compatibility: 140x140x25mm fan
Pressure tested: 1bar

Enclosed:
– EK-Quantum Surface S series radiator
– 12x M4x30mm for 25mm thick fans
– 12x M4x5mm for mounting the radiator directly to the case

CATATAN PENTING :
* Stock terbatas, silahkan konfirmasi terlebih dahulu sebelum membeli.
* Barang Baru.
* Harga belum termasuk ongkos kirim.
* Disarankan menggunakan asuransi.
* PRODUK INI TIDAK ADA GARANSI dan TIDAK BISA RETUR
* Silahkan sertakan Video Unboxing dari awal terima barang saat melakukan komplain, Tanpa video Unboxing kami tidak akan menerima komplain kekurangan dan kerusakan apapun.
* MEMBELI BERARTI ANDA SUDAH MEMBACA DAN SETUJU DENGAN ATURAN INI.

In stock

SKU: 3831109839072 Category:

Description

EKWB EK Quantum Surface S420 – White Radiator 420mm

With a thickness of only 30mm, the EK-Quantum S Series Surface radiators are ideal for space-constrained cases. Despite the reduced thickness, they deliver exceptional performance at very low and medium fan speeds. A total of eighteen copper 2mm wide tubes across the entire length of the radiator assure optimal coolant flow putting no stress on your cooling loop. High-grade non-louvered copper fins with 20 FPI density provide the best balance between thermal transfer and air resistance for optimal performance even at low-speed fan operation. A Push/Pull setup on an S Series EK-Quantum Surface radiator is not something EK would recommend since it will not bring a proportional performance increase. If more cooling power is needed, adding additional radiators is the way to go.

Technical and Material Specifications:

– High-grade 99.9% copper fins

– Copper H90 tubing

– Brass H62 end tank chambers

– Stainless Steel side plates

– Extruded Aluminum Silver anodized end piece covers

– Brass nickel-plated adapters and plugs

Dimensions: 465 x 145 x 30mm (L x W x H)

Weight: 1.12kg

FPI: 20

Port threads: 2x G1/4"

Fan compatibility: 140x140x25mm fan

Pressure tested: 1bar

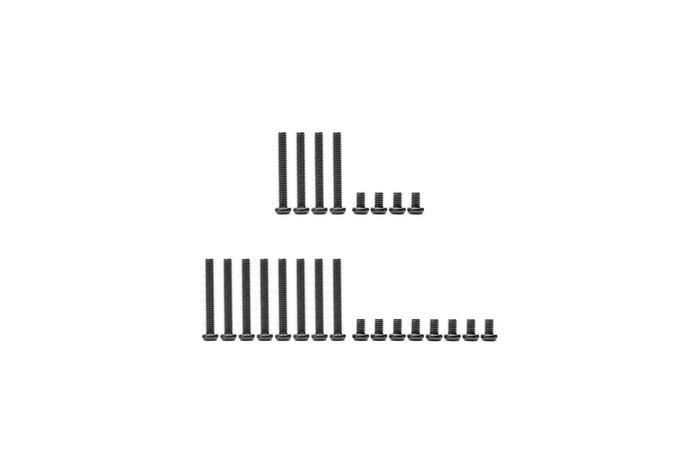

Enclosed:

– EK-Quantum Surface S series radiator

– 12x M4x30mm for 25mm thick fans

– 12x M4x5mm for mounting the radiator directly to the case

CATATAN PENTING :

* Stock terbatas, silahkan konfirmasi terlebih dahulu sebelum membeli.

* Barang Baru.

* Harga belum termasuk ongkos kirim.

* Disarankan menggunakan asuransi.

* PRODUK INI TIDAK ADA GARANSI dan TIDAK BISA RETUR

* Silahkan sertakan Video Unboxing dari awal terima barang saat melakukan komplain, Tanpa video Unboxing kami tidak akan menerima komplain kekurangan dan kerusakan apapun.

* MEMBELI BERARTI ANDA SUDAH MEMBACA DAN SETUJU DENGAN ATURAN INI.

Additional information

Weight 2,5 kg
