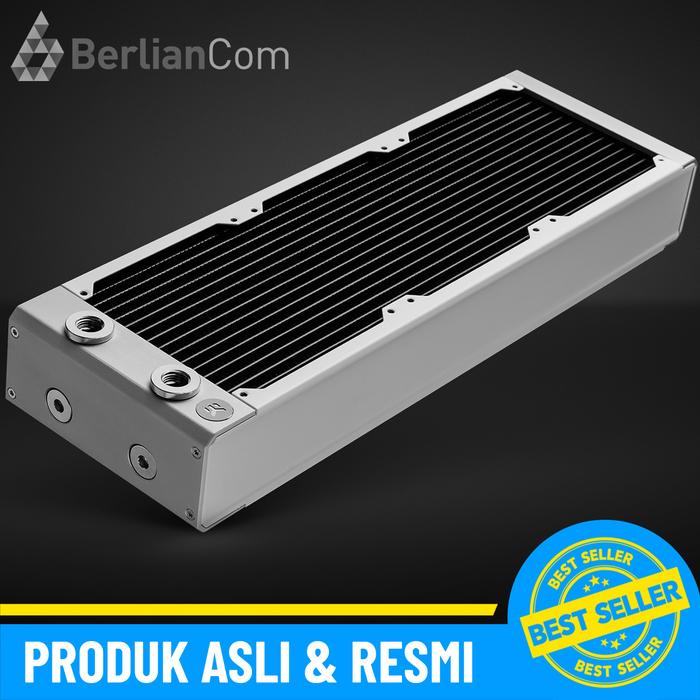

EKWB EK Quantum Surface X360M Radiator – White

EKWB EK Quantum Surface X360M Radiator – White

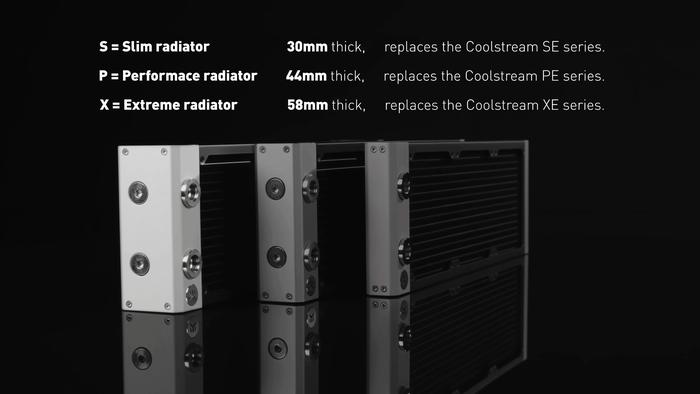

For those who demand the most cooling power out of an EK-Quantum Surface radiator, the 58mm-thick X Series is the right choice. These thick radiators will benefit the most from medium and high-speed fans or even a Push/Pull setup. Equipped with a total of four G1/4“ threaded connection ports, the X Series provides additional versatility during the loop planning process. The fifth G1/4“ port located on the end-tank is an irreplaceable feature when it comes to draining the loop and air bleeding. A total of sixteen 2mm wide copper tubes across the entire radiator ensure optimal coolant flow, putting no stress on your cooling loop. High-grade non-louvered copper fins with 18 FPI density provide the best balance between thermal transfer and air resistance.

Technical and Material Specifications
– High-grade 99.9% copper fins
– Copper H90 tubing
– Brass H62 end tank chambers
– Stainless Steel side plates
– Extruded Aluminum Silver anodized end piece covers
– Brass nickel-plated adapters and plugs

Dimensions: 405 x 130 x 58mm (L x W x H)
Weight: 2.07kg
FPI: 18
Port threads: 5x G1/4″
Fan compatibility: 120x120x25mm fan
Pressure tested: 1bar

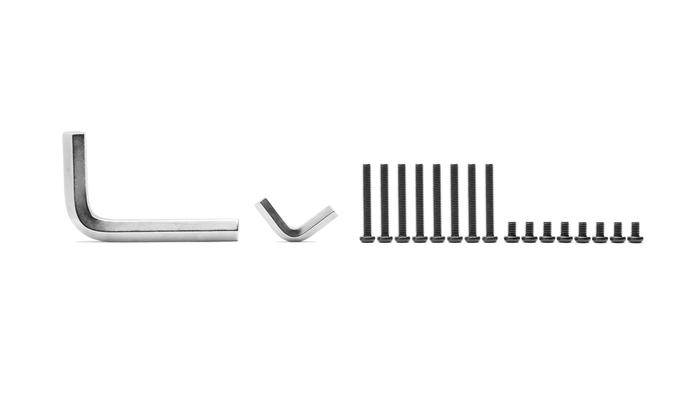

Enclosed:
– EK-Quantum Surface X series radiator
– 12x Phillips Slotted M4x30mm for 25mm thick fans
– 12x Phillips Slotted M4x5mm for mounting the radiator directly to the case
– 6mm steel Allen
– 9mm steel Allen

Designed and Engineered in Slovenia

CATATAN PENTING :
* Stock terbatas, silahkan konfirmasi terlebih dahulu sebelum membeli.
* Barang Baru.
* Harga belum termasuk ongkos kirim.
* Disarankan menggunakan asuransi.
* PRODUK INI TIDAK ADA GARANSI dan TIDAK BISA RETUR
* Silahkan sertakan Video Unboxing dari awal terima barang saat melakukan komplain, Tanpa video Unboxing kami tidak akan menerima komplain kekurangan dan kerusakan apapun.
* MEMBELI BERARTI ANDA SUDAH MEMBACA DAN SETUJU DENGAN ATURAN INI.
