EKWB EK Quantum Torque Pass Through G1/4 Nickel

EKWB EK Quantum Torque Pass Through G1/4 Nickel

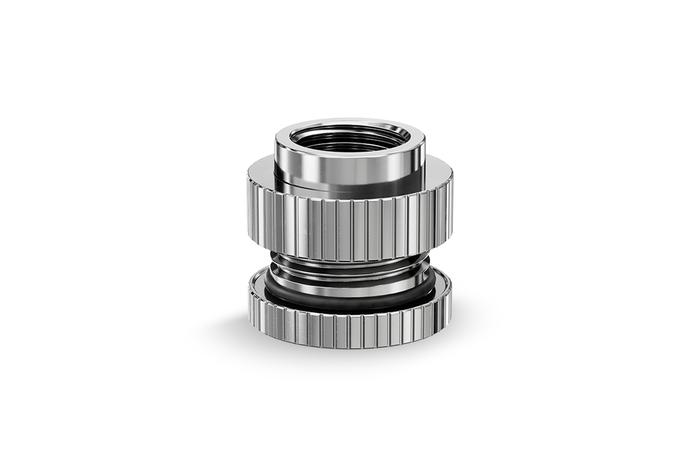

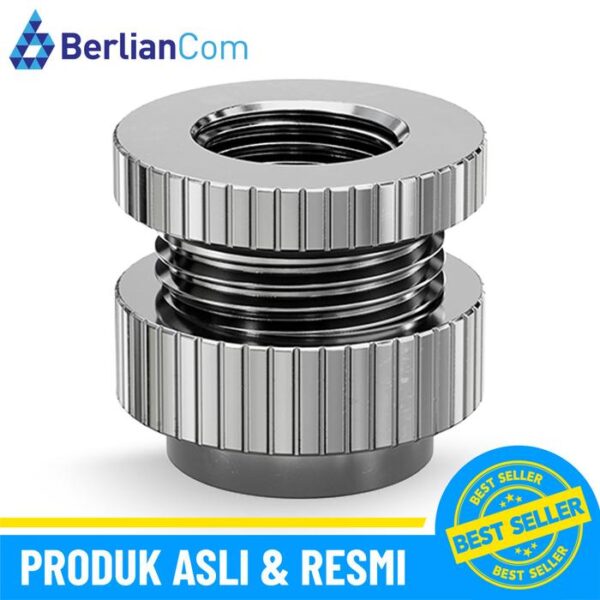

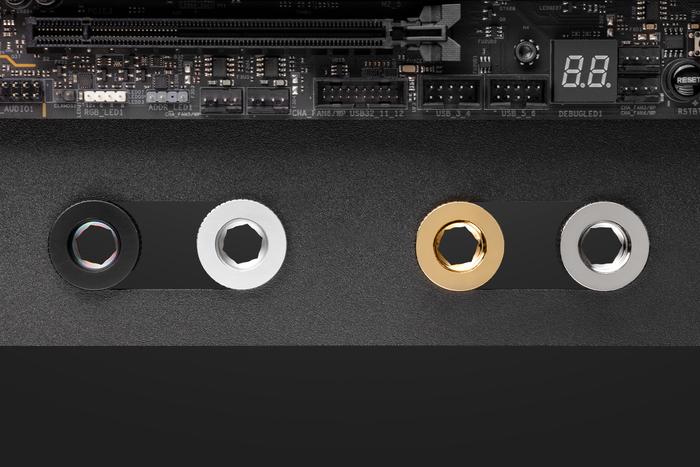

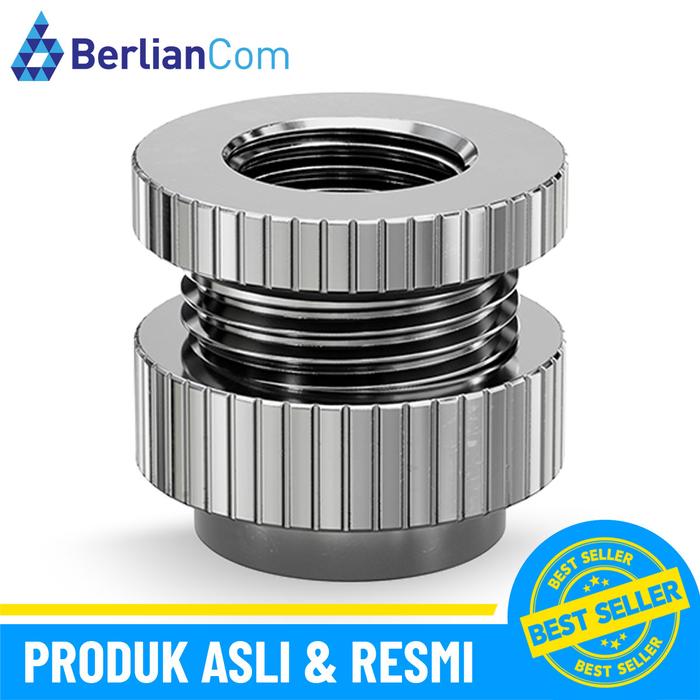

The EK-Quantum Torque Pass-Through G1/4 – Nickel is a panel-mounted adapter fitting. Equipped with female G1/4″ BSP threads on both ends, it enables seamless liquid interconnection between separate chassis compartments.

This fitting is particularly well-suited for compact small form factor (SFF) cases that lack space for internal radiator placement, necessitating external positioning.

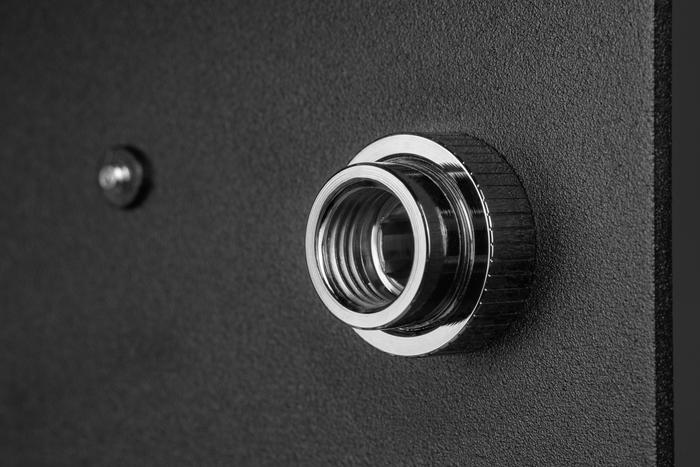

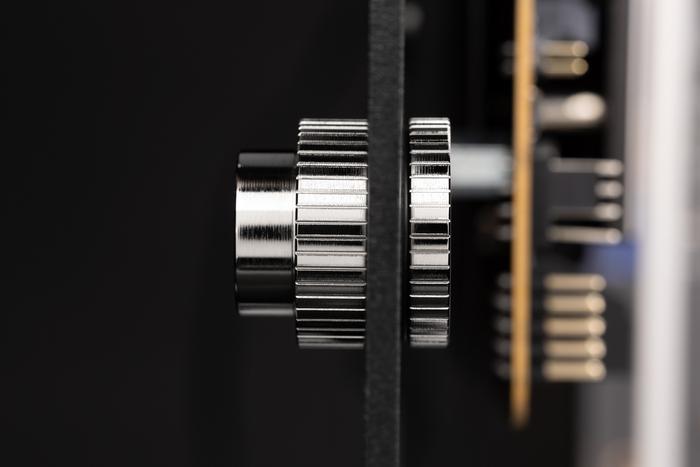

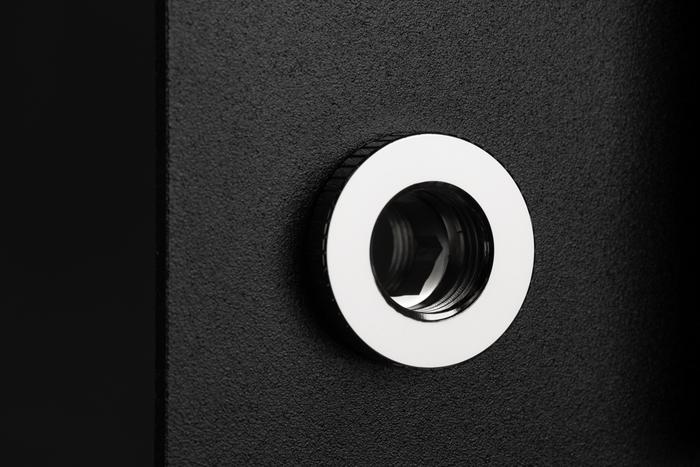

This Adapter Fitting is secured to the panel with the enclosed grip nut.

It is constructed from nickel-plated CNC-machined brass, ensuring durability and an appealing aesthetic.

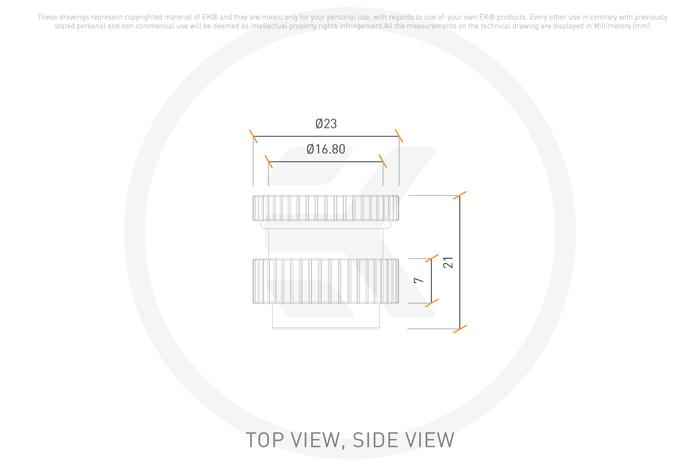

Technical data:
– Threading: 2 x G 1/4″ (Female-Female)
– Thread length: 4.5mm
– Hole Diameter: 20.0mm
– Max thickness of the wall to bridge: 6mm
– Installation height on the side of the screw: 4mm
– Installation height on the side of the nut: min 7mm/max 16mm
– Width: 23.0mm
– Length: 21.0mm

CATATAN PENTING :
* Stock terbatas, silahkan konfirmasi terlebih dahulu sebelum membeli.
* Barang Baru.
* Harga belum termasuk ongkos kirim.
* Disarankan menggunakan asuransi.
* PRODUK INI TIDAK ADA GARANSI dan TIDAK BISA RETUR
* Silahkan sertakan Video Unboxing dari awal terima barang saat melakukan komplain, Tanpa video Unboxing kami tidak akan menerima komplain kekurangan dan kerusakan apapun.
* MEMBELI BERARTI ANDA SUDAH MEMBACA DAN SETUJU DENGAN ATURAN INI.
