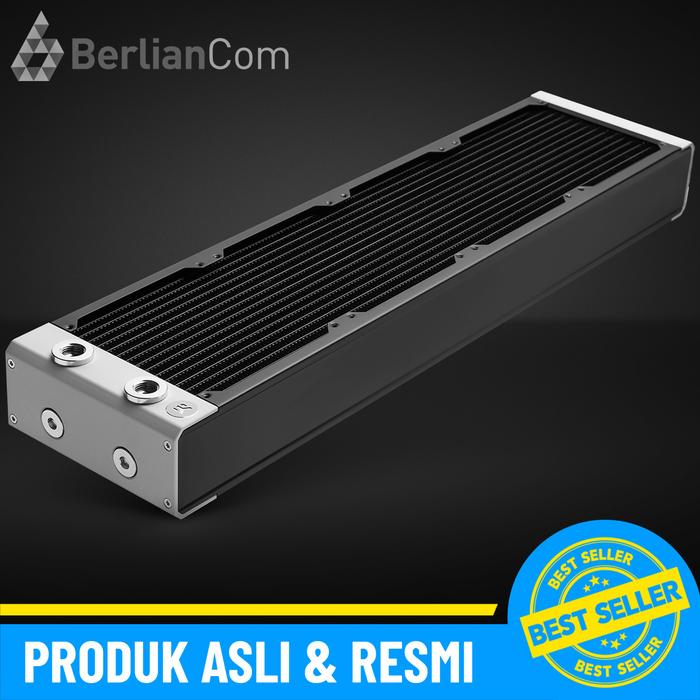

EKWB EK Quantum Surface X480M Radiator – Black

EKWB EK Quantum Surface X480M Radiator – Black

For those who demand the most cooling power out of an EK-Quantum Surface radiator, the 58mm-thick X Series is the right choice. These thick radiators will benefit the most from medium and high-speed fans or even a Push/Pull setup. Equipped with a total of four G1/4“ threaded connection ports, the X Series provides additional versatility during the loop planning process. The fifth G1/4“ port located on the end-tank is an irreplaceable feature when it comes to draining the loop and air bleeding. EK doesn’t recommend using slow-running fans on X Series EK-Quantum Surface radiators as they require adequate airflow to remove more heat than they absorb in their thick core.

Technical and Material Specifications:
– High-grade 99.9% copper fins
– Copper H90 tubing
– Brass H62 end tank chambers
– Stainless Steel side plates
– Extruded Aluminum Silver anodized end piece covers
– Brass nickel-plated adapters and plugs

Dimensions: 525 x 130 x 58mm (L x W x H)
Weight: 2.57kg
FPI: 18
Port threads: 5x G1/4″

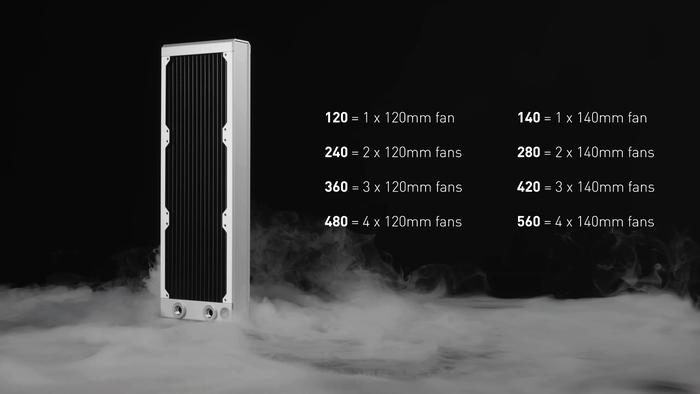

Fan compatibility: 120x120x25mm fan
Pressure tested: 1bar

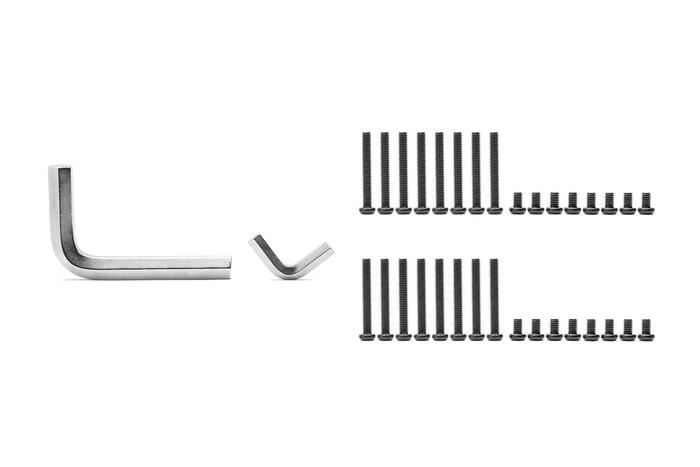

Enclosed:
– EK-Quantum Surface X series radiator
– 16x Phillips Slotted M4x30mm for 25mm thick fans
– 16x Phillips Slotted M4x5mm for mounting the radiator directly to the case
– 6mm steel Allen
– 9mm steel Allen

Designed and Engineered in Slovenia
